AdTech Using three-dimensional network structure and connected pores organic foam as a carrier and immerse into thixotropic special Al2O3 molten material slurry, using four correction center distance and automatic extrusion, the slurry evenly deposited in the foam, after 1320 ℃ Drying and solidification.
AdTech uses a three-dimensional network structure and connected pores, organic foam is used as a carrier and immersed in a thixotropic special Al2O3 molten material slurry. Four correction center distances and automatic extrusion are used, and the slurry is evenly deposited in the foam after 1320 ℃ Drying and solidification.
Product Description
- Using a three-dimensional network structure
- Connected pores organic foam as a carrier and immerse into thixotropic special molten material slurry
- Using four correction center distances and automatic extrusion
- The slurry evenly deposited in the foam, after 1680 ℃ Drying and solidification
- Ceramic foam filter completed

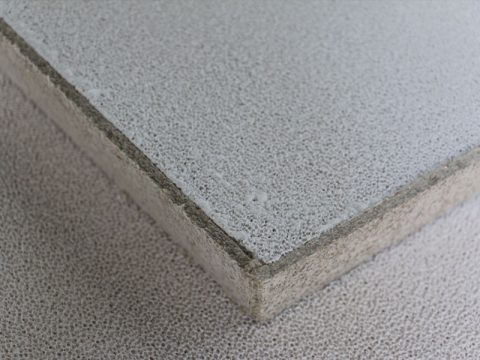

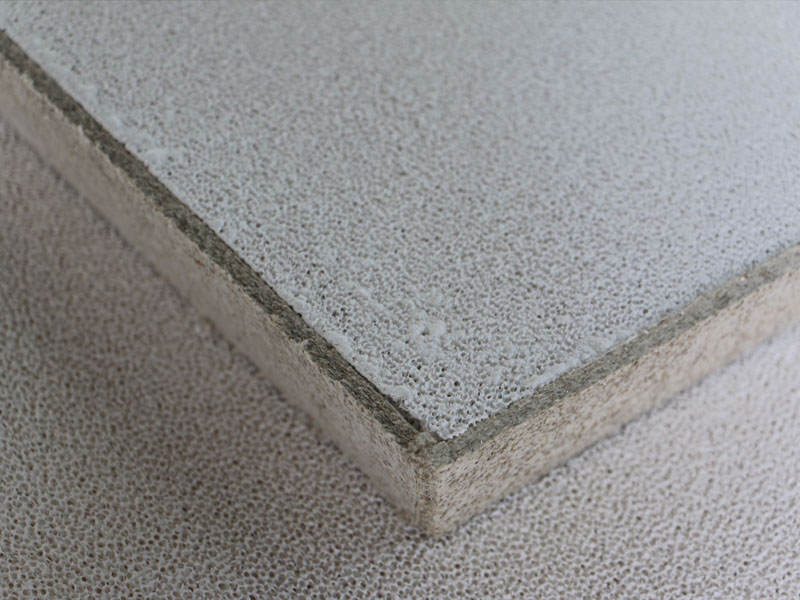

- There is expansive cotton for sealing at the edge
Application
ceramic foam filter can effectively remove and absorb large or small impurities in molten aluminum, and improve the surface quality, product performance, and microstructure effectiveness. It is mainly used in aviation, transportation, and other aluminum alloy precision casting.
Performance
ceramic foam filter can effectively remove and absorb large or small impurities in molten aluminum, and improve the surface quality, product performance, and microstructure effectiveness. Mainly used in the domestic, construction, electricity, condensing tubes, cable, and other aluminum alloy precision casting.
Product Feature
- Aluminum alloy bar chosen: 10-30ppi
- Long-term casting choose: 30-50ppi
- High-quality aluminum profile or plate choose:40 or 50ppi
- Double zero wave continuous casting and rolling choose: >50ppi
- Other specifications can be customized to your requirements
Product Parameter
Technical parameters
| Index | Density (g. cm3) |
Rupture modulus (816℃ Mpa) |
Compressive strength（Mpa） |
Operating temperature(MAX) (℃) |
Seal thermal expansion (℃) |
|
| Item | 0.45 | 5. 5 | 0. 68 | 1550 | 450-550 | |
| Pore size | ||||||
| Type（PPI） | 10 | 20 | 30 | 40 | 50 | 60 |
| Pore | 8- 12 | 18- 22 | 28- 32 | 38-42 | 48- 52 | 58-62 |
| Average size（um） | 2000 | 840 | 590 | 420 | 297 | 250 |
| Date of application | ||||||
| Product Specifications(mm) |
Effective Filtration area(％) |
Filtration flow Range（kg/min） |
||||
| 7in(178*178*50) | 75 | 22-56 | ||||
| 9in(229*229*50) | 75 | 25-80 | ||||
| 12in(305*305*50) | 80 | 50-156 | ||||
| 15in(381*381*50) | 85 | 85-252 | ||||
| 17in(432*432*50) | 86 | 110-335 | ||||
| 20in(508*508*50) | 88 | 160-478 | ||||
| 23in(584*584*50) | 89 | 210-640 | ||||
| 26in(660*660*50) | 90 | 276-830 |
Usage
- Clean the aluminum filter box, and keep it clean and intact.
- Put the ceramic foam filter into the filter box carefully, press the Sealing gasket around, and avoid molten aluminum Dispersing or floating away.
- Use electricity or gas to Preheat the filter box and ceramic foam filter evenly for 15-30min, and make the temperature next to the molten aluminum, and ceramic foam filter preheating temperature surpass 460℃. expansion cotton will seal after heating, it makes the ceramic foam filter steady in molten aluminum. preheating makes ceramic foam filter pores open and avoids occlusion expansion and contraction.
- Observe the change of molten aluminum pressure, and control the flowing molten aluminum needed, normal start pressure: 100-150mm. the pressure falls below 75-100mm when molten aluminum flows, it will grow later.
- Do not shock and beat the ceramic foam filter infiltration. Control molten aluminum flow rate in launder.
- Take out the ceramic foam filter and clean the filter box after filtration.
Storage:
stored in a ventilated and dry environment.
Package:

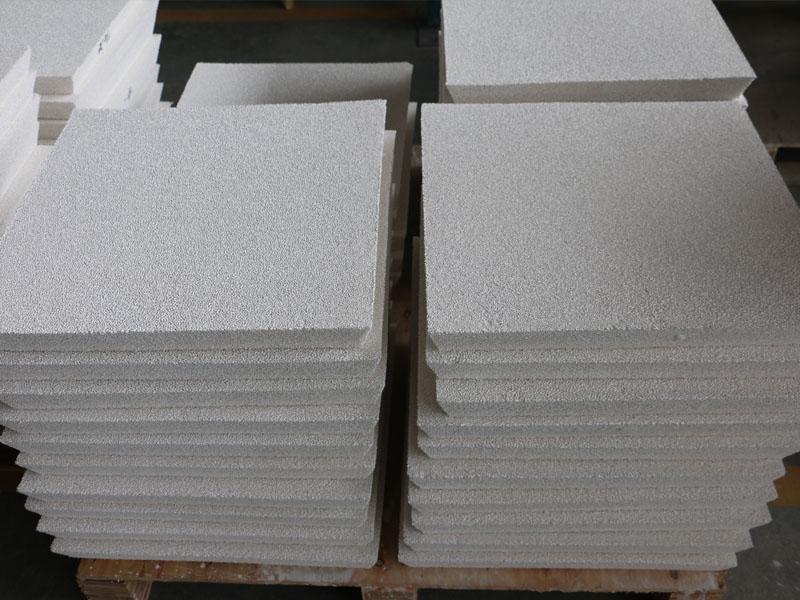

5 pieces/ carton, 60 pieces/pallet.
