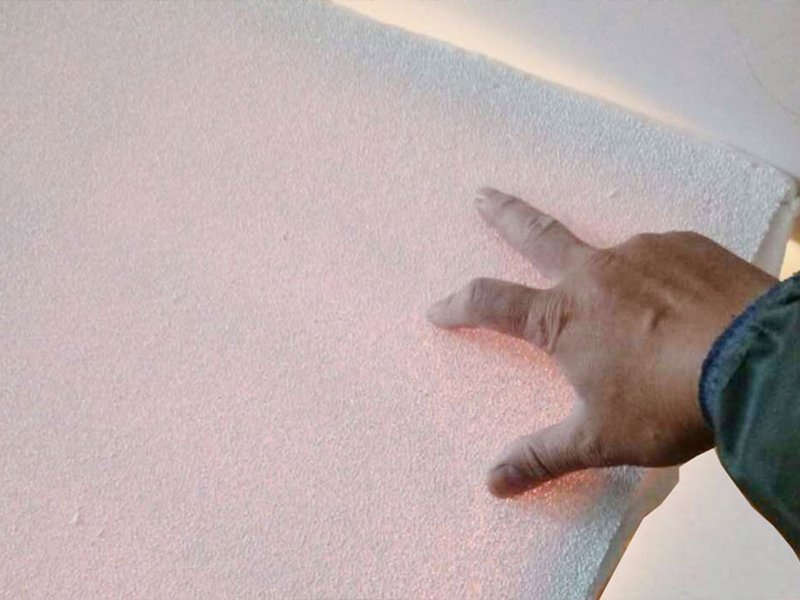

Foam Ceramic Filter For Casting Filtration is mainly used for the filtration of aluminum and aluminum alloys in foundries and foundries. The alumina ceramic foam filter is characterized by excellent stability and thermal shock resistance.
The complexity of the filter will not be compromised during the casting process.
Alumina ceramic foam filter has excellent resistance to molten aluminum erosion and corrosion, can effectively remove inclusions, reduce trapped gas and provide laminar flow, so that the filtered metal is significantly more transparent.
Cleaner metals can produce higher quality castings, fewer scraps and fewer inclusion defects, all of which help increase profits.
Continuous improvement and development of its filters for molten metal filtration.
Cleaner metals can produce higher quality castings, fewer scraps and fewer inclusion defects, all of which help increase profits.
It is suitable for improving the quality of aluminum alloy and other non-ferrous alloy castings.
It can improve the metallurgical structure, enhance mechanical properties, and transform turbulent flow into laminar pores.
Alumina ceramic foam filters are available in all standard sizes and different thicknesses. We provide the entire porosity range from PPI 10 to PPI 60 (PPI = number of holes per inch) or according to customer requirements.
The Foam Ceramic Filter For Casting Filtration structure is the first cost-effective medium to remove non-metallic inclusions from molten aluminum. Ceramic foam filters are still the standard for aluminum filtration in foundries all over the world.
The edge of the alumina ceramic filter is equipped with a gasket.
The gasket ensures the correct and tight position of the filter in the filter box.
You can also choose alumina ceramic foam filter without gasket.
Ceramic foam filter Dimension
660x660x50(26 inch)
584x584x50(23 inch)
508x508x50(20 inch)
432x432x50(17 inch)
381x381x50(15 inch)
305x305x50(12 inch)
228x228x50(9 inch)
178x178x50(7 inch)
Ceramic foam filter Pore Size (PPI): 10/20/30/40/50/60
30ppi 40ppi Foundry Filter is the most commonly used ceramic foam filter in the aluminum casting industry.
Ordinary aluminum casting usually uses 10-40ppi ceramic filter plates.
Aviation and high-quality aluminum materials usually use 30-60ppi ceramic filter plates.
