Ceramic Foam Filter

Ceramic Foam Filter

Ceramic Foam Filter is produced basing on carrier with solid reticular structure and combined organic foam pores.
The producing procedure is as below, put carrier into the thixotropic alumina slurry, adopt square to center correcting automatic extrusion process, so that slurry evenly deposits in foam skeleton of carrier.
After drying solidification, then carrier will turn into final product by roasting formed under 1180 ℃ high temperature.
Filter is installed in the filter bowl for filtrating impurity in molten aluminum alloy, which helps to meet the requirement of production in high value-added, high-tech performance aluminum alloy precision casting.
Such as computer hard drive, PS baseboard for printing, canning materials, fan blades for turbojet engine, etc.

Ceramic Foam Filter Advantages
Adopt adsorption principle for filter, can effectively remove big piece inclusions in molten aluminum, and effectively adsorb tiny inclusions.
No broken bits drop out, effectively reduce the pollution of molten aluminum.
Superior thermal shock resistance, improve erosion resistance ability of molten metal.
Automatic flow production，3 calibration procedures，precision size，fit the filter bowl tightly.
Improve the surface appearance and performance, purify molten aluminum.

Ceramic Foam Filter employs dedicated Aluminium Ceramic Foam Filter to remove inclusions which are generated between the refining system and the mold table. The ability of the ceramic foam filter to capture these inclusions is critical to maintaining a clean ingot during the solidification of metal. Accordingly, the quality and the productivity in downstream operations such as forging, extruding, and rolling are guaranteed.

Ceramic Foam Filter

Ceramic Foam Filter mainly for filtration of aluminum and alloys in foundries and cast houses.
With the excellent resistance to attack and corrosion from molten aluminum, the filter can effectively remove inclusions, reduce trapped gas and provide laminar flow and then the filtered metal is significantly cleaner.
Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.

ADTECH keeps focusing on the manufacture of the metallurgical material.
ADTECH is one pioneer following by the International Enterprise, who keeps focusing on the manufacture of the metallurgical material.
1.Ceramic Foam Filter
2.Degassing Unit

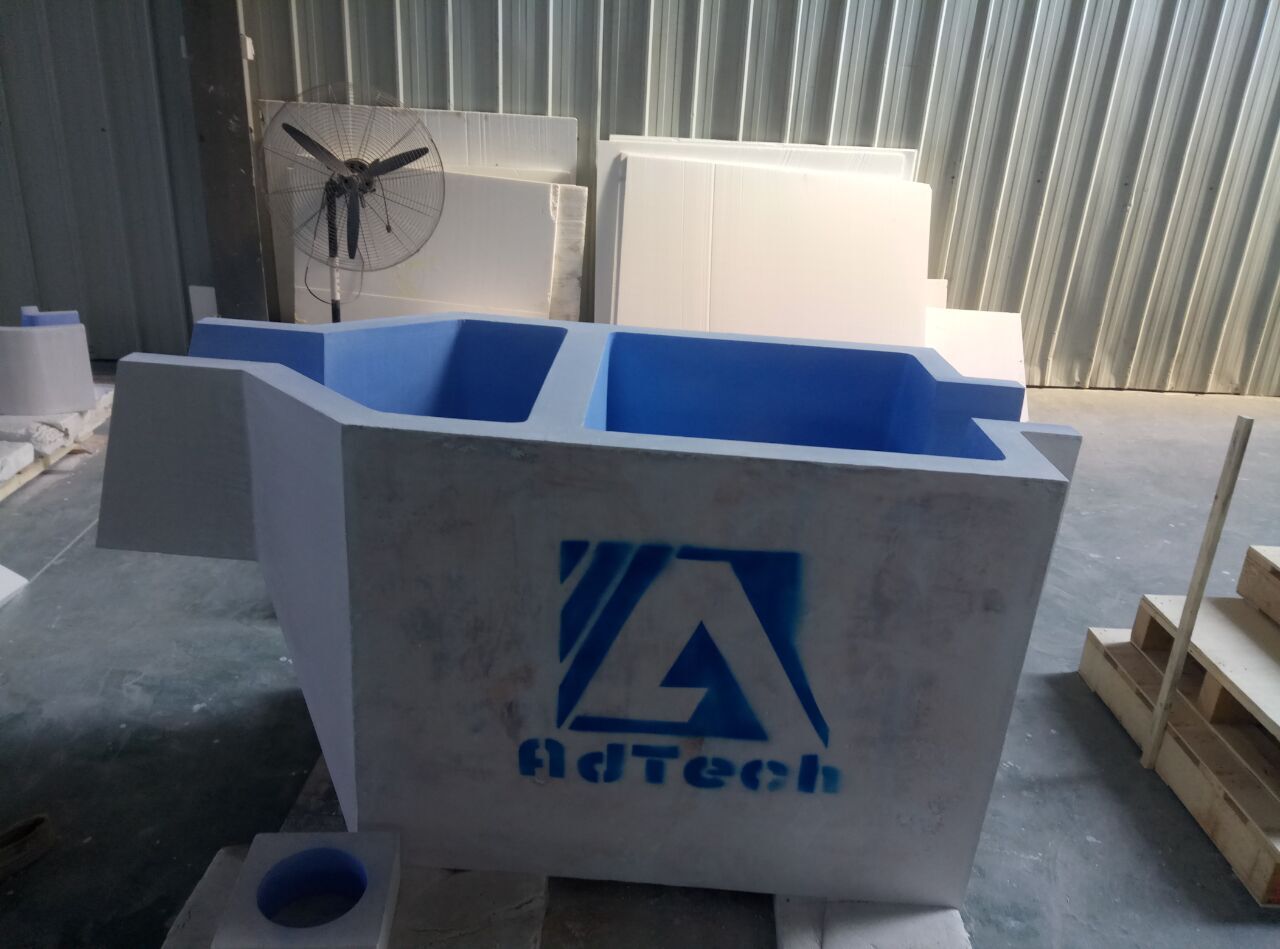

3.Filter Box
4.Hot-top casting series
5.Roll casting nozzle
6.Flux series
7.Other Metallurgical Material
