Ceramic Filter Suppliers Seller Provide alumina ceramic foam filter for export which is used in the aluminum metallurgy industry and foundries to remove non-metallic inclusions and metal melt in the oxide film.
Before use, it is important to preheat the filter and filter box.
During the preheating process, care must be taken to control the heating rate and temperature distribution. This can minimize the thermal shock and stress in the refractory material of the filter and filter box.
During the casting process, due to the three-dimensional structure of the filter, the metal flow is effectively stabilized, making the mold smoother and filling more uniform.
It is usually applied by placing an alumina ceramic foam filter in a filter box. The filter has excellent corrosion resistance and molten aluminum corrosion performance, can effectively remove inclusions, reduce residual gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metals can produce higher-quality castings, reduce scrap, and reduce inclusion defects, all of which help increase profits.
Ceramic Filter Suppliers Seller provides Ceramic Foam Filter, Tap Out Cone, Degassing Unit, CFF Unit, Castertip, Launder, hop-top casting for molten aluminum. Please visit www.adtechamm.com or contact sales@adtechamm.com for Ceramic Foam Filter Manufacturing Process.
Characteristics of alumina ceramic foam filter plate
1. Excellent dimensional tolerance
2. Stable chemical composition
3. The highest filtration efficiency
4. Excellent strength
5. Resistance to corrosion of molten aluminum and alloys
6. Bevel and compressible gasket

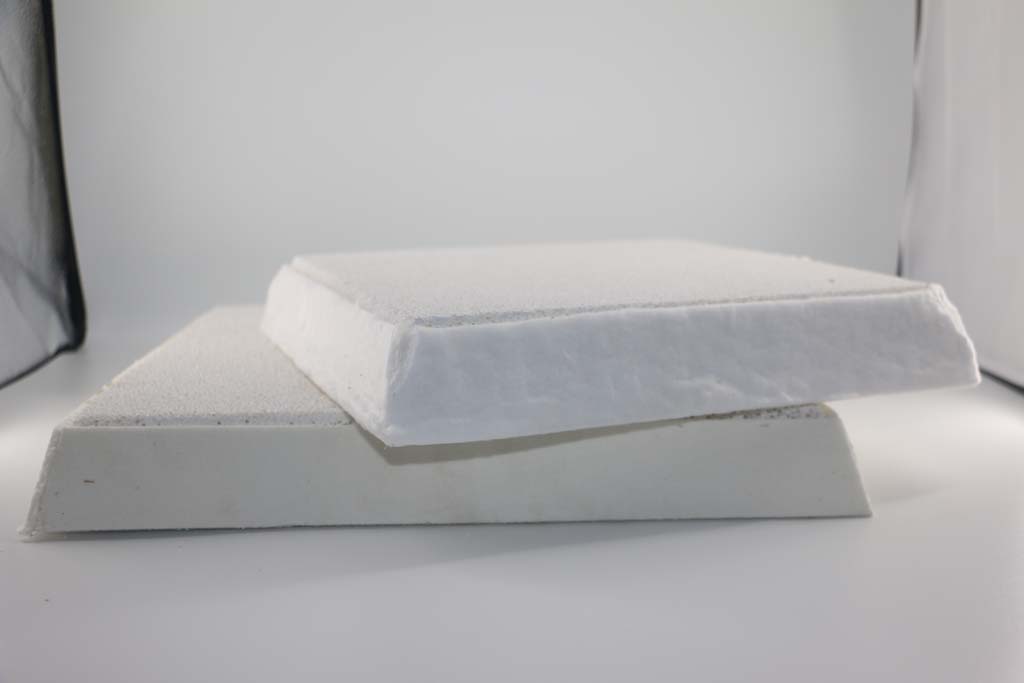

Product description of alumina foam ceramic filter plate
Improve the uniformity of the material and the internal structure of the metal.
Improve mechanical properties.
Eliminate metallurgical defects (gas deposition, pores, leakage).
Improve surface quality.
The processability of the product has been significantly improved, thereby reducing its processing cost.
Ceramic foam filter Dimension
660x660x50(26 inch)
584x584x50(23 inch)
508x508x50(20 inch)
432x432x50(17 inch)
381x381x50(15 inch)
305x305x50(12 inch)
228x228x50(9 inch)
178x178x50(7 inch)
Ceramic foam filter Pore Size (PPI): 10/20/30/40/50/60
30ppi 40ppi Foundry Filter is the most commonly used ceramic foam filter in the aluminum casting industry.
Ordinary aluminum casting usually uses 10-40ppi ceramic filter plates.
Aviation and high-quality aluminum materials usually use 30-60ppi ceramic filter plates.
